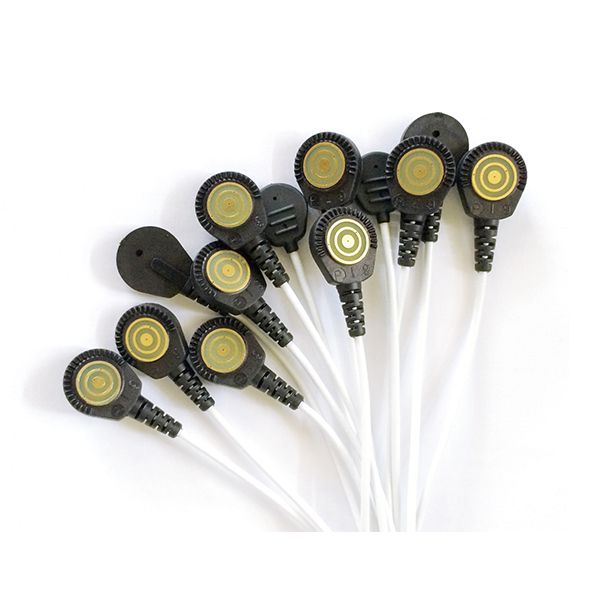

• The TCRE sensor has a revolutionary electrode design. Each TCRE sensor contains 3 electrodes: outer ring, middle ring, and center disc.
• The TCRE sensor performs the Laplacian automatically and takes bipolar differences of the surface potentials from its closely spaced electrodes, which improves common mode rejection.
• The outer ring of the TCRE sensor has the same size as a conventional disc electrode and emulates disc electrode biopotentials.
• Each TCRE provides 2 output signals: ①a high fidelity, differential Laplacian signal by combining the differences between (outer ring - center disc) and (middle ring - the center disc)；②a conventional EEG signal from the outer ring.
• Besides EEG, the TCRE sensor can also be used to acquire electrocardiography (ECG), electromyography (EMG), and other biopotentials.

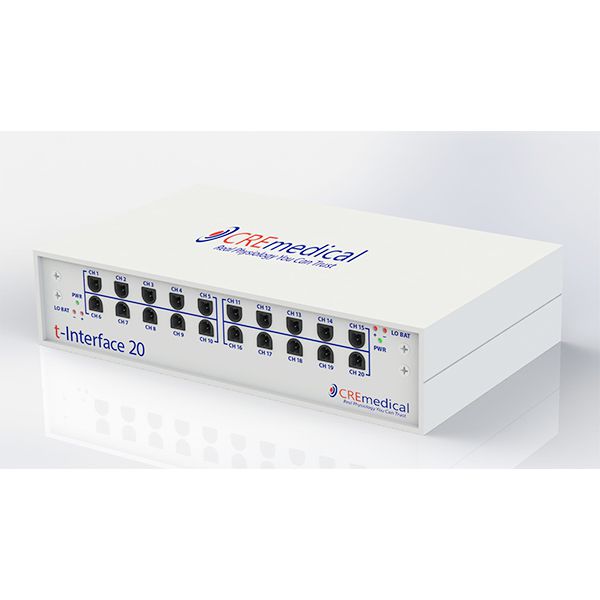

• The TCRE works in conjunction with the t-Interface 20.

Advantages of tEEG Compared to Conventional EEG

• 375% improved signal-to-noise ratio (SNR) and superior artifact rejection.
• 10 times higher spatial resolution.
• Only 8% mutual (overlapping) information, higher information content.
• 1/10 time to collect event related potentials (ERPs).
• Detect high frequency activity.
